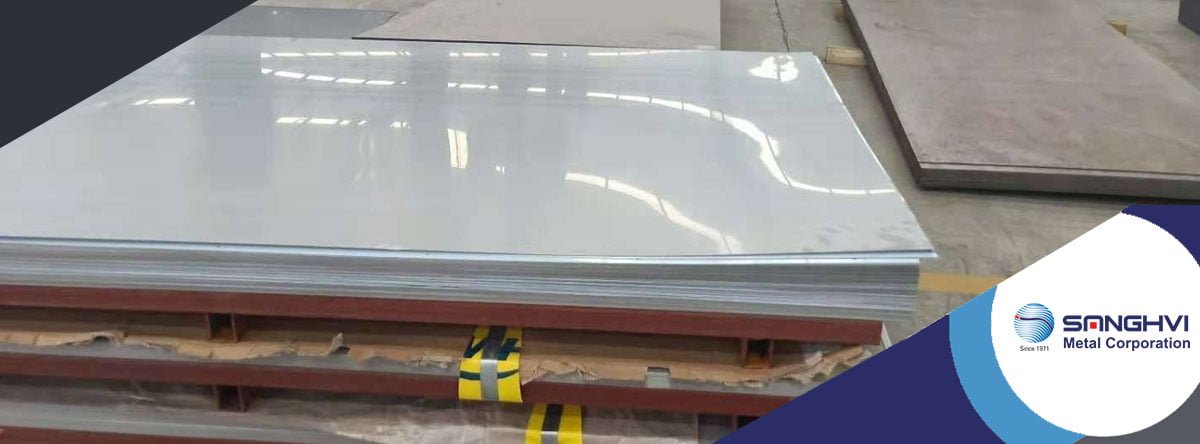

Stainless Steel 304/304L/304H Plates Supplier, Stockist

Stainless Steel 304 Plates, Austenitic Stainless Steel 304/304L/304H Plates, SS S30400 Plates, Stainless Steel 304L Plates, Stainless Steel 304H Plates, ASTM A240 Stainless Steel TP304 Plates Suppliers, SS 1.4948 Plate, TP304L Stainless Steel Plates in Best Price, Stainless Steel 1.4306 / 1.4307 Plates, SS 304 Plates, ASME SA240 SS 304, 304L, 304H Plates Supplier in Mumbai, India.

Stainless Steel 304 CR Plates, SS 304H Cold Rolled Plate, S30409 Plates, 304 Stainless Steel Plates Exporter, Stainless Steel TP304L HR Plates, Stainless Steel 304/304L/304H Sheets, UNS S30403 Plates, SS 304 Chequered Plates, SS 304H Hot Rolled Plate, 1.4301 Plates, Stainless Steel 304/304L/304H Plates Stockist in Mumbai.

Plates

Table of Contents

  • What is Stainless Steel 304/304L/304H Plates
  • Standard Specification For Stainless Steel 304/304L/304H Plates
  • TP304/304L/304H Stainless Steel Plates Equivalent Grades
  • ASTM A240 Stainless Steel 304/304L/304H Plates Types
  • Chemical Composition of Stainless Steel 304/304L/304H Plates
  • Mechanical Properties of ASTM A240 SS 304/304L/304H Plates
  • Other Types of 304/304L/304H Stainless Steel Plates Ready Stock
  • Grade TP304/304L/304H Stainless Steel Plates Applications
  • Searches Related to Stainless Steel 304/304L/304H Plates
  • Export Destinations for Stainless Steel 304/304L/304H Plates

Sanghvi Metal Corporation is one of the promising manufacturers and exporters of Stainless Steel plates. We provide a wide range of Stainless Steel products all around the world. We fabricate Stainless Steel Plates as per the client’s requirements and supply quality products. These Stainless Steel 304, 304L, 304H Plates are available in different types, sizes, and lengths. We provide high-quality Stainless Steel Plates in the standard form at an affordable cost.

All stainless steel 304, 304L, and 304H plates comprise carbon, chromium, silicon, sulphur, phosphorus, molybdenum, manganese, and nickel. Where Molybdenum, nickel, and chromium are the significant components in the entire chemical composition. Stainless Steel 304L shows yield strength, tensile strengths, good temperature resistance, and elongation. Stainless steel 304H comprises a high carbon content and is mostly used to resist regular oxidizing in most of the application industry. Stainless Steel 304 plates are widely used in pressure vessels, heat exchangers, boilers, etc. Stainless Steel 304L has good forming, robust corrosion resistance, and the highest strength.

The physical and mechanical features of Stainless Steel 304L plates are superior finish, workable strength, excellent machinability, which increase toughness, and longer working life of Stainless Steel 304L plates.

Stainless Steel Plates Grade 304/304L/304H, SS 304L BA Finish Plates, Cut To Size Stainless Steel 304 Plates, SS 304L Plates Stocks, Stainless Steel 304 2D Finish Plates, Stainless Steel TP304H 2B Finish Plates, 304 SS Sheet, Stainless Steel 304/304L/304H Industrial Plates Exporter in India.

The Stainless Steel 304L has high-temperature resistance and non-magnetic property in hot working conditions. Sanghvi Metal Corporation offers Stainless Steel 304L plates suitable for welding applications due to its low carbon content and excellent corrosion resistance. The primary benefits of Stainless Steel 304H are high strength, high pressure-resistant, high Mechanical stress-resistant good formality, and reusability. SS 304, 304L 304H Plates can be used in severely corrosive environments, where weld annealing is only required in high-stress applications. Sanghvi Metal Corporation offers Stainless Steel plates widely used in Petrochemical Industry, Chemical Industry, Energy Industry, Pharmaceuticals Industry, Power Plant Industry, Oil and Gas Industry, Aerospace Industry, Food Processing Industry, and Refining Industry.

At Sanghvi Metal Corporation, we always manufacture the best quality of Stainless Steel 304 plates using the best quality raw materials. Our highly skilled professionals accurately produce these stainless steel 304H plates using modern tools and the latest techniques. While developing, we never compromise with the product quality and follow worldwide quality standards. We used great packaging tools with water-resistant and high-quality materials to ensure damage-free delivery on a decided time.

Stainless Steel 304/304L/304H Plates

Standard Specification For Stainless Steel 304/304L/304H Plates

Standard ASTM A240 / ASME SA240
Plate Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Plate Thickness 0.01-200 mm
Plate Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Plate Surface Finish No.1, 2B, BA, 8K Mirror, Hairline, satin (Met with Plastic Coated) Embossed, brush, No.4, HL, matt, pvc etc.
Plate Hardness Half Hard, Quarter Hard, Soft, Hard, Spring Hard
Value added services for Plates Waterjet cutting, Plasma cutting, Laser cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing

Stainless Steel TP304/304L/304H Plates Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 304 1.4301 S30400 SUS 304 304S31 08Х18Н10 Z7CN18-09 X5CrNi18-10
SS 304L 1.4306 / 1.4307 S30403 SUS 304L 3304S11 03Х18Н11 Z3CN18-10 X2CrNi18-9 / X2CrNi19-11
SS 304H 1.4948 S30409 SUS 304H

Sanghvi Metal Corporation is a Professional Supplier and Stockist of Stainless Steel 304/304L/304H Plates in Mumbai, India.

ASTM A240 Stainless Steel 304/304L/304H Plates Types

Hot Rolled Plates

Hot Rolled Plates

Stainless Steel 304/304L/304H Hot Rolled Plates | UNS S30400, S30403, S30409 Hot Rolled Plates | 1.4301/1.4306 /1.4948 HR Plates | 304 Stainless Steel Hot Rolled Plates Supplier | ASTM A240 SS TP304L HR Plates, SS 304H Hot Rolled Plates Stockist | HR Stainless Steel 304 Plates | 304L SS Hot Rolled Plates Exporter | TP304H Hot Rolled SS Plates
Cold Rolled Plates

Cold Rolled Plates

Stainless Steel 304/304L/304H Cold Rolled Plates | UNS S30400, S30403, S30409 Cold Rolled Plates | 1.4301/1.4306 /1.4948 CR Plates | 304 Stainless Steel Cold Rolled Plates Supplier | ASTM A240 SS TP304L CR Plates, SS 304H Cold Rolled Plates Stockist | CR Stainless Steel 304 Plates | 304L SS Cold Rolled Plates Exporter | TP304H Cold Rolled SS Plates
Chequered Plates

Chequered Plates

Stainless Steel 304/304L/304H Chequered Plate | UNS S30400, S30403, S30409 Chequered Plates | 1.4301/1.4306 /1.4948 Chequered Plates | 304 Stainless Steel Chequered Plates Supplier | ASTM A240 SS TP304L Chequered Plates, SS 304H Chequered Plates Stockist | Chequered Plates Stainless Steel 304 | 304L SS Chequered Plates Exporter | TP304H SS Chequered Plates

ASME SA 240 Stainless Steel 304/304L/304H Plates Chemical Composition

Grade C Mn Si P S Cr Ni
SS 304 0.08 max 2 max 0.75 max 0.045 max 0.030 max 18 – 20 8 – 11
SS 304L 0.035 max 2 max 1.0 max 0.045 max 0.030 max 18 – 20 8 – 13
SS 304H 0.10 max 2 max 0.75 max 0.045 max 0.03 max 18 – 20 8 – 10.5

Stainless Steel 304/304L/304H Plates Mechanical Properties

Grade Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
SS 304 / 304L 8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
SS 304H 8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 40 %

Stainless Steel 304/304L/304H Plates Other Types

  • AISI 304, 304L, 304H Plates
  • Stainless Steel 304 Plates Stockholder
  • 304L Stainless Steel Plates Manufacturer
  • Stainless Steel 304 Sheets Stocks
  • Gr 304/304L/304H Stainless Steel Plates
  • Stainless Steel 304H Chequered Plates
  • Stainless Steel 304 BA Finish Plate in Mumbai
  • SS 304L 2B Finish Plates in India
  • SS 304H 2D Finish Sheets Manufacturer in India
  • SUS 304/304L/304H Plates
  • SS 1.4301/1.4306 /1.4948 Plates
  • SS UNS S30403/S30400/S30409 Plates
  • SS TP304, 304L, 304H Sheets Supplier in India
  • ASME SA240 SS 304 Sheets Stockholder
  • Stainless Steel TP304L Shim Sheets Supplier
  • Stainless Steel 304H Sheets Exporters
  • ASTM A240 304 Stainless Steel Plates
  • 304L SS Plates Stockholder In Mumbai

Grade 304/304L/304H Stainless Steel Plates Applications

oil-gas-application
Rectangle-669-3.svg
chemical-application
Group_63.svg
refineries
Rectangle-674-1.svg
construction-industry
Group-80-3.svg
chemical-industry
  • 01Oil & Gas Industrires
  • 02 Chemical Industries
  • 03Construction Industries
  • 04In Offshore Pipelines, Pipe Works
  • 05Petrochemical Industry
  • 06 Shipbuilding Industries
  • 07Hydraulic Applications
  • 08Piping Systems
